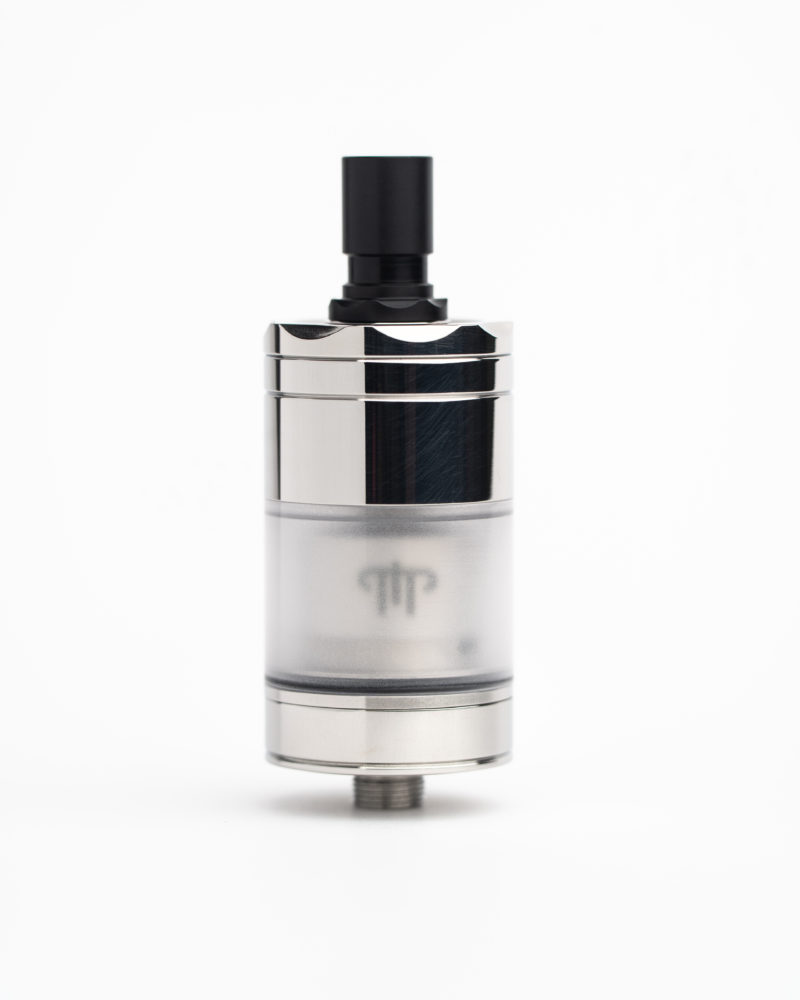

Diplomat MTL RTA

79,95  79,95  21% Iva

Diplomat MTL RTA is top notch quality bottom fill pure MTL RTA made of 304L stainless steel and designed with a new airflow technology, creating flavorful and intense clouds with no turbulences. Compactness and simplicity allow an easy cleaning and rebuild. Comes with three different bells that alter the flavor. It is also equiped with an adjustable airflow ring (0.8 to 1.8mm draw).

Technical specifications
Dimensions: 23mm * 40.45mm (non including drip tip and 510 conection)
Materials: SS304L, NRB70 o-rings, PEEK insolators, PC or PSU tank, black POM drip tip
External airflow intake holes: 0.8mm – 1mm – 1.2mm – 1.4mm – 1.6mm – 2mm
Airpin: 1.8mm
Drip tip: Mirror polished steainless steel, 9.2mm diameter, 14.2mm lenght visible part, 3.8 to 4.2mm inner bore
Conector: 510

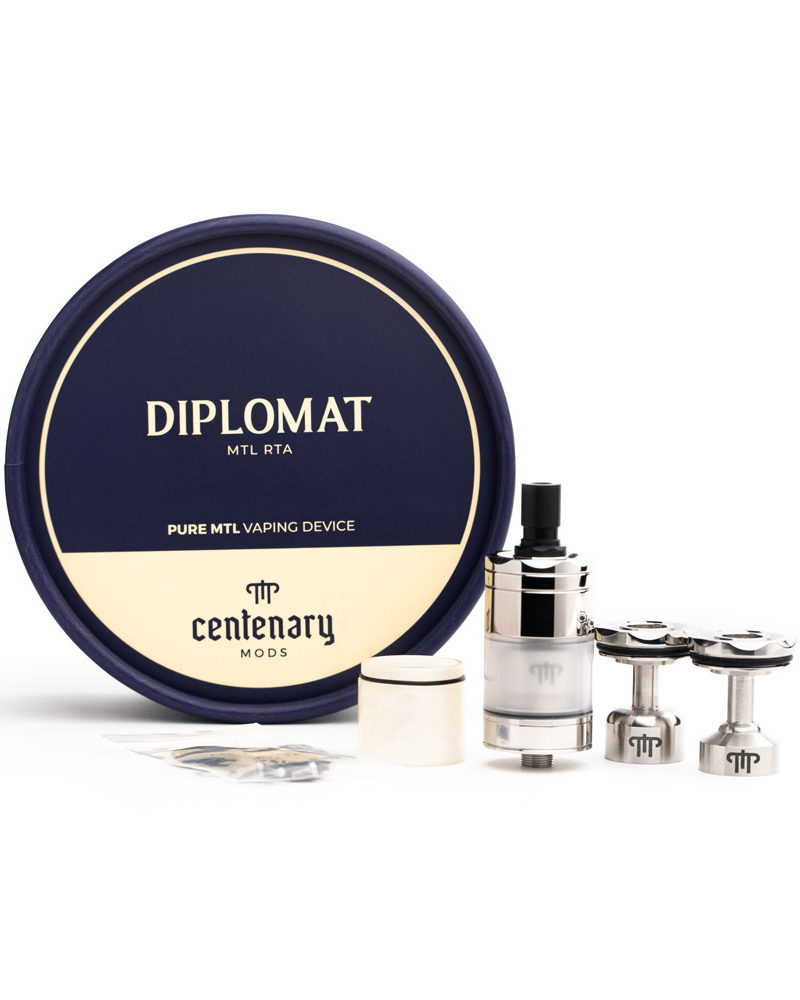

*This product is supplied as an accessory kit consisting of several parts.*

13 in stock

SKU: 0000054 Category:


The difference

An innovative airflow system

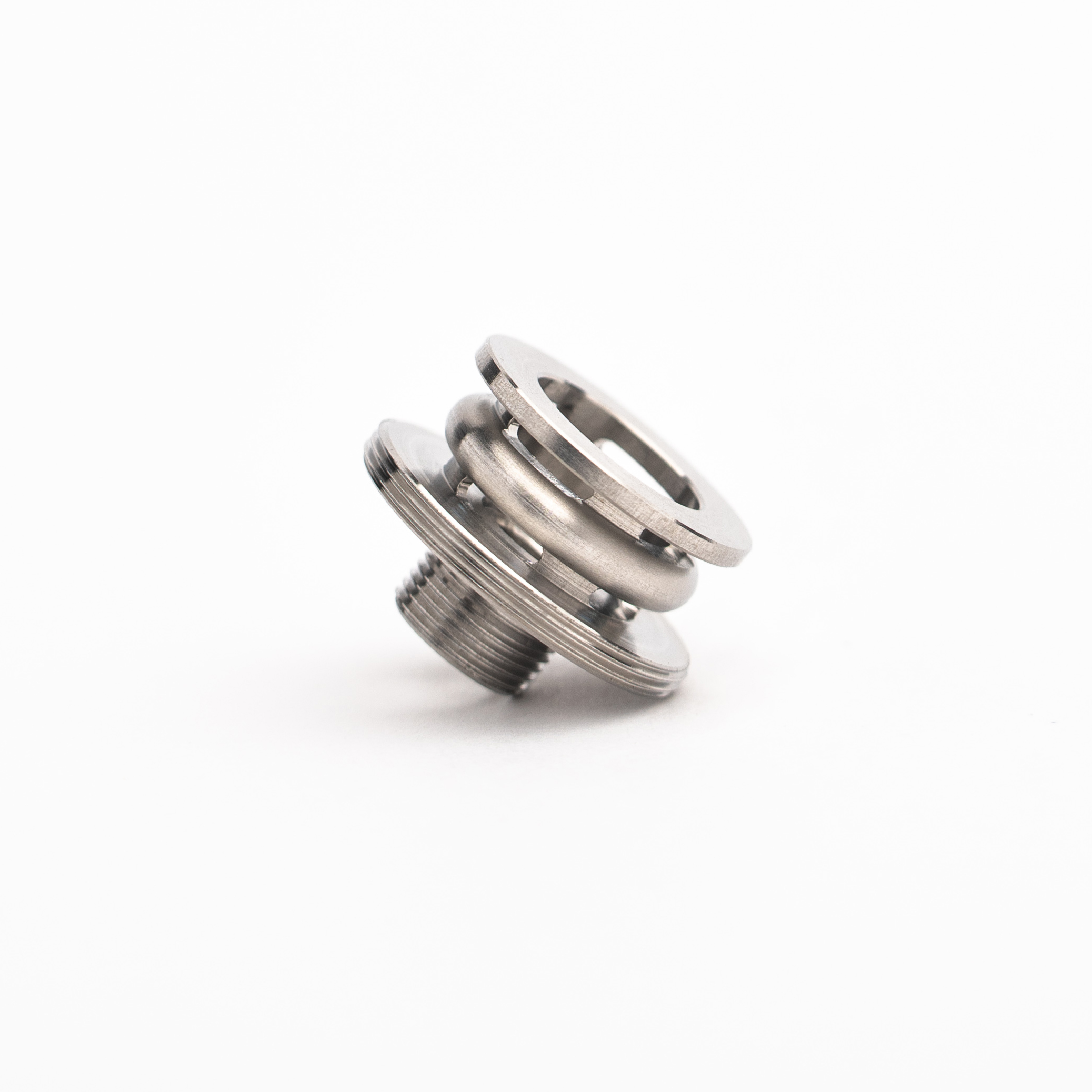

Inside the deck is where the magic happens. With its circular ring between the air intake and airpin, smooth and silent draw, and good air compression/acceleration is achieved without the need for smaller airflow pins. With a larger airflow under the coil, the air will be dispersed more evenly and cool down faster. This allows for a perfect draw, from a really restrictive MTL to a loose MTL, without loss of flavor.

Choose wisely your coil

Recommended wire: 28ga for airflow 0.8mm-1.2mm. 27/26ga for airflow 1.4mm and above.

Coil positioning

Flavor and Throat hit will vary, depending on the coil placement. Distance between the airflow outlet and the coil can easily be adjusted between 2mm and 1.5mm.

All in one

Too many bells? Taste your choice

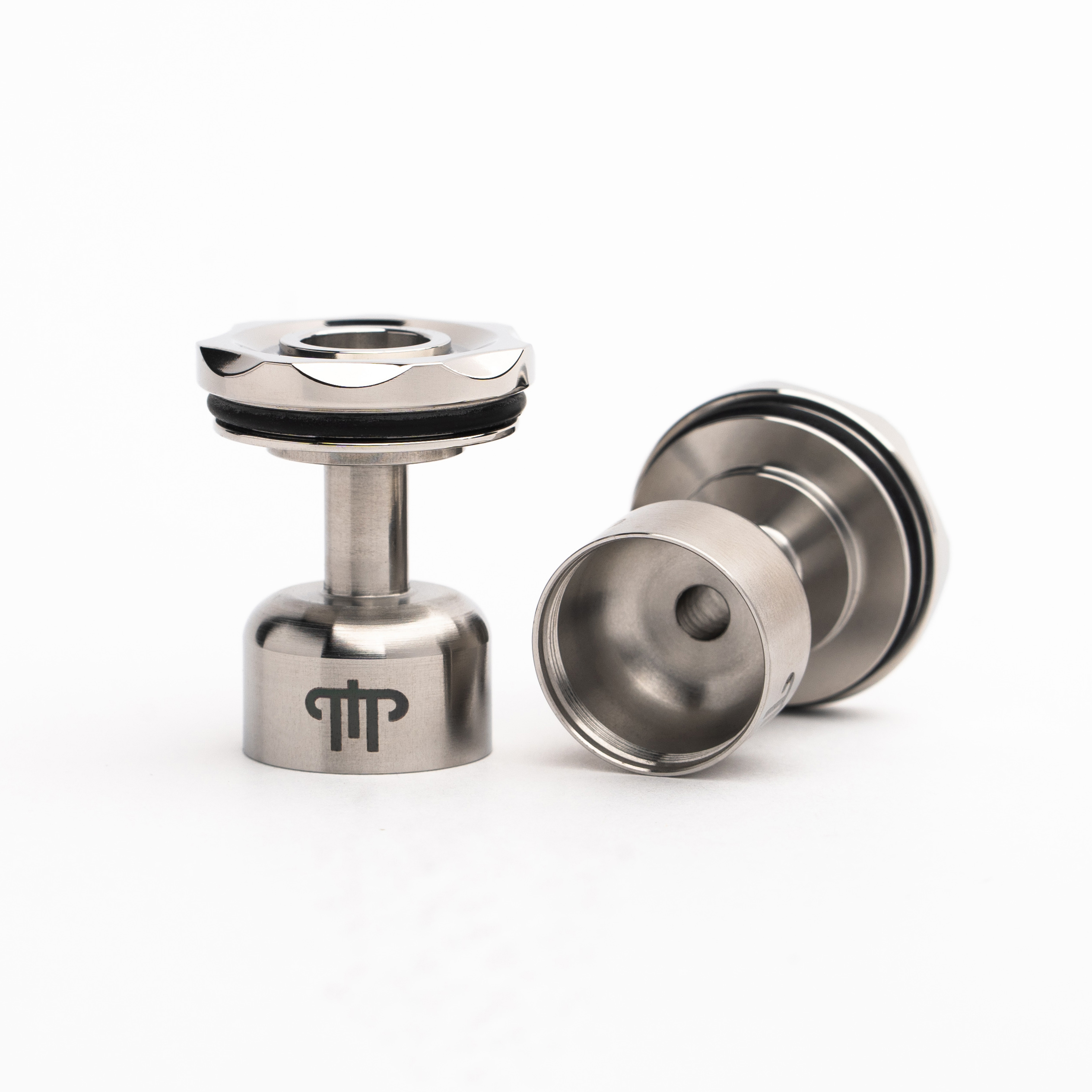

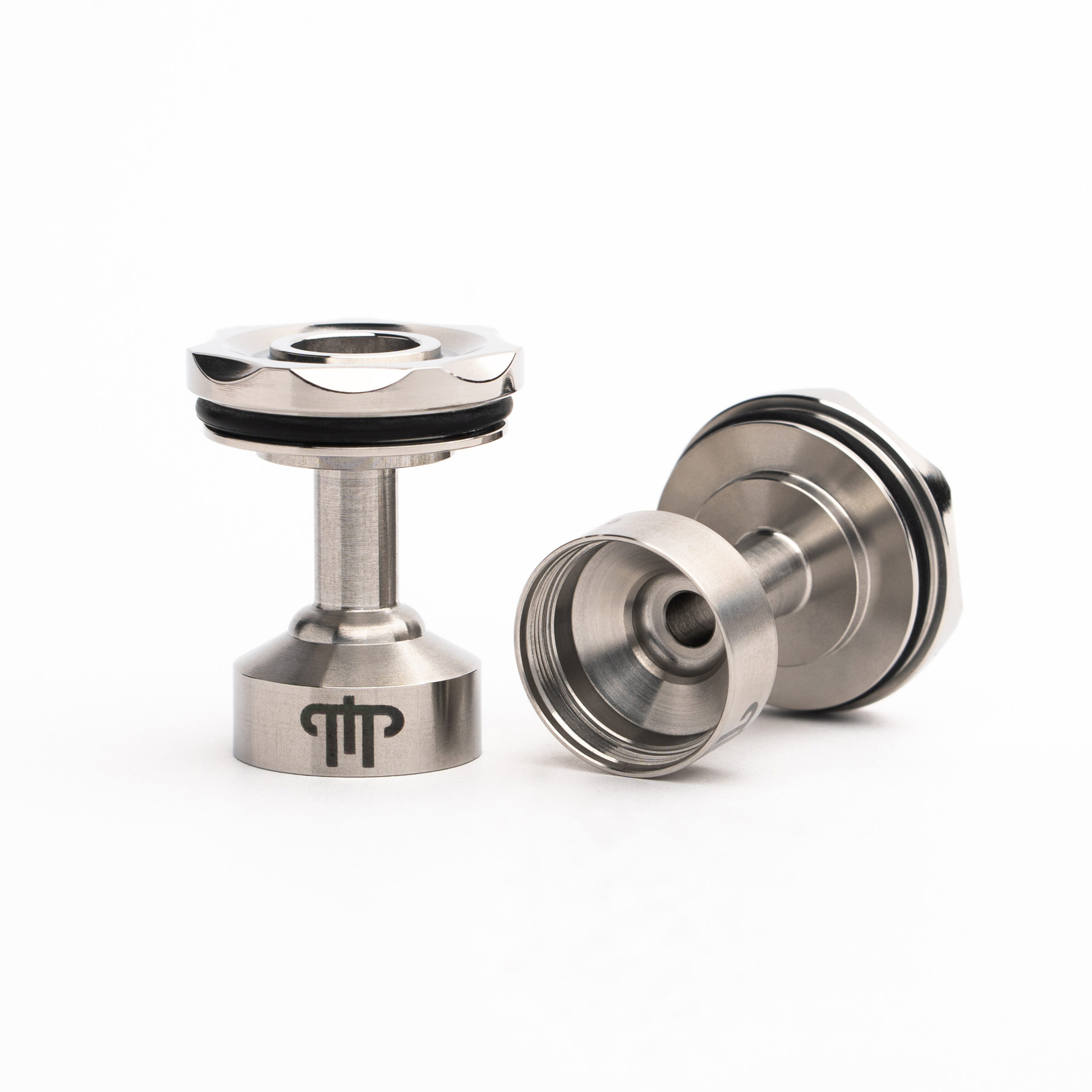

The Diplomat ships with three different bells: Duke, Rhodesian and Hawkbill. Each with a different geometry, diameter, height and chimney, to allow the Diplomat to pair well with a wide variety of e-liquid profiles.

Tip: Test each of the bells and adjust the coil placement to your preference, prior to filling the atomizer with liquid
